Same sh*t, different day: Automating Manhole Production with Robotic Concrete Printing

Table of contents

Vertico has developed a fully automated robotic system that prints custom flow profiles inside manhole bases. Built with Summum Engineering and IRS Robotics, it replaces the slow and unsafe manual carving of these profiles.

The problem: manual labor in unsafe conditions

The Netherlands produces over 50,000 manholes every year, and about 10% of them need a custom flow profile. Today these profiles are carved by hand.

The work is physically demanding, slow and unsafe. Not surprisingly, there is a growing shortage of people willing to do it.

__wf_reserved_inherit
Click the image to play the video

The solution: robotic 3D concrete printing and parametric design

In collaboration with Summum Engineering and IRS Robotics, Vertico developed a safer alternative. The robotic system prints the manhole base with precision, directly inside the prefabricated pit.

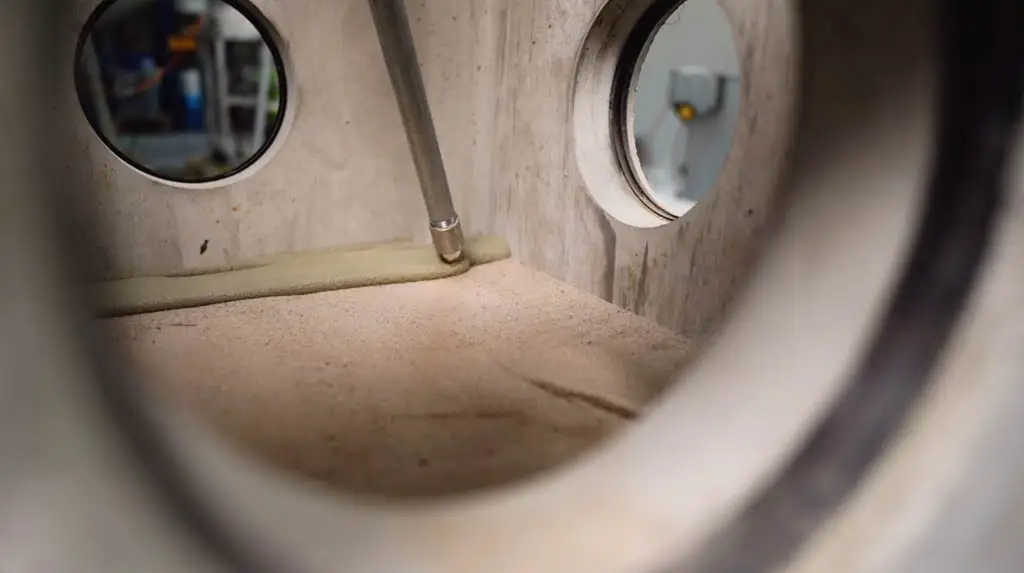

A 6-axis robotic arm with the Accelerator 2K printhead builds up the concrete layer by layer to form the required flow profile on demand.

A user-friendly parametric tool drives the whole process. It adjusts in real time to different pit dimensions and specifications.

__wf_reserved_inherit
__wf_reserved_inherit

Efficiency, safety and digital infrastructure

The approach removes the need for manual carving and makes the result more consistent. It also opens the door to fully digital production of infrastructure components.

For Vertico, it shows how 3D printing applies to industrial-scale construction challenges as well as architecture. The video above shows the system at work, and the manhole solution project has more detail.

Financial support was provided in part by MIT Zuid.
