For over a century, concrete formwork has dictated the geometry of buildings while generating immense waste. In 3DCP, we are now replacing disposable molds with hybrid, stay-in-place printed structures, combining digital precision with sustainability.
The solution, however, is not to eliminate the mold but to reinvent it. We must look to a principle understood by Roman engineers two thousand years ago: the most effective structures are often composites, combining different materials for distinct purposes. By reimagining 3D printed concrete not as a monolithic final product but as intelligent, permanent formwork, we are creating a hybrid construction method that is at once radically new and deeply rooted in architectural history.
Historical Inspiration: Roman Composite Construction Techniques

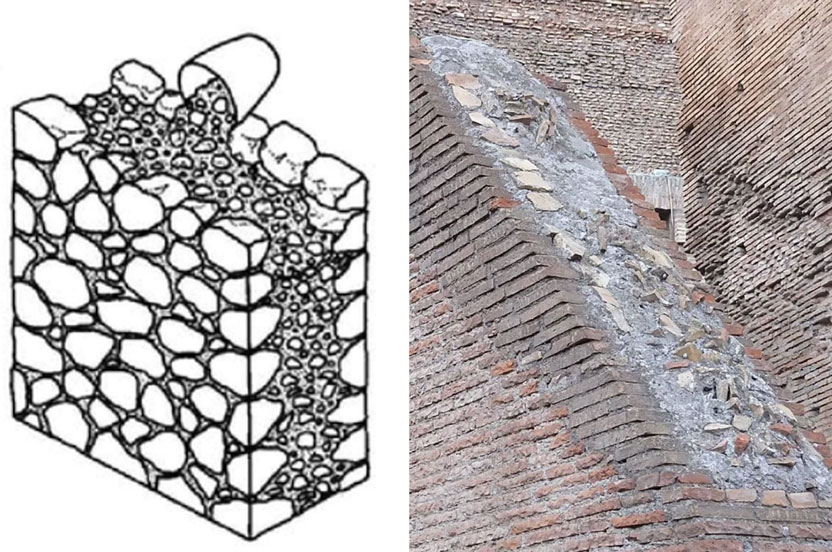

The Romans perfected a technique called Opus Caementicium. They would construct outer walls with precisely laid brick or stone and then fill the internal cavity with a mixture of lime mortar and aggregate rubble. The facing provided the precise form and durable exterior, while the core provided the mass and compressive strength at a lower cost. It was a brilliant synthesis of high-performance skin and efficient structural core.
x.jpg)

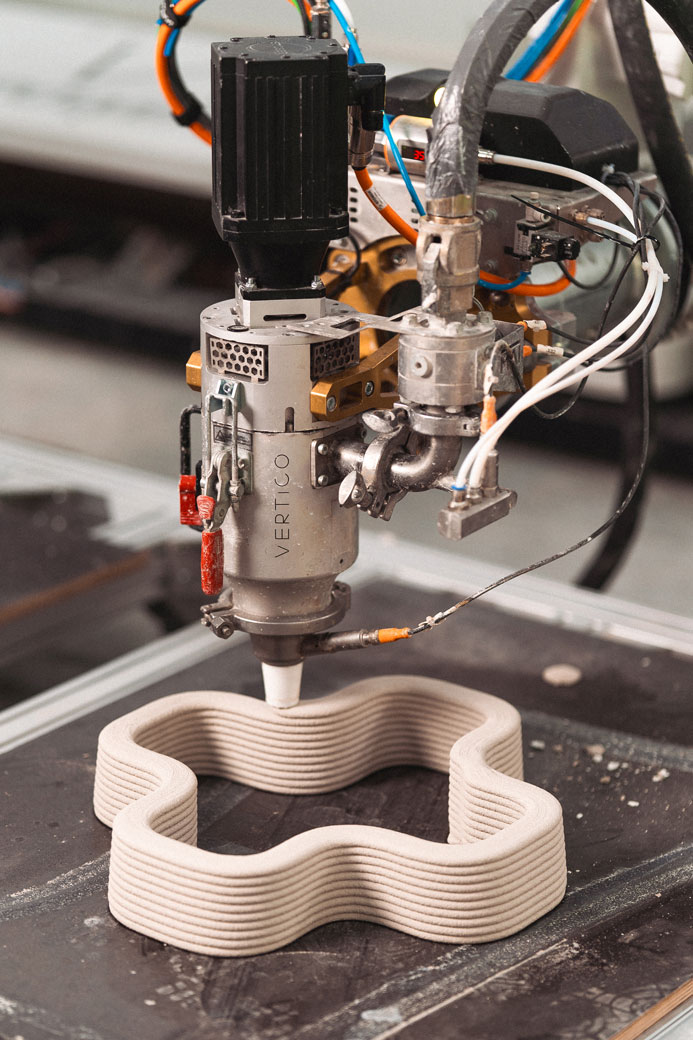

Our hybrid approach is the 21st-century evolution of this logic. We use robotic 3D printing to extrude a thin, highly engineered shell. This shell acts as a permanent, stay-in-place formwork, defining the building component's final geometry with digital precision. The open cavity is then easily fitted with conventional steel reinforcement before being filled with a standard, often low-emission, cast-in-place concrete. This method elegantly resolves one of 3D printing’s primary challenges: the integration of steel rebar. The bottleneck of manual intervention is removed, and certified, understood reinforcement methods are seamlessly incorporated.
Material Optimization in 3DCP: High-Tech Shell, Sustainable Core
This separation of functions unlocks an unprecedented level of material intelligence. The outer shell, which requires the complex rheology and rapid setting times of advanced printable mortars, makes up only a fraction of the total volume. It is the architectural skin and the high-performance mold in one. We can dedicate our most advanced material science to this thin layer, optimizing it for surface finish, chemical resistance, or tensile strength.
The core, which constitutes the bulk of the structural mass, can then be optimized for different goals. We can fill it with a low-cost, standard concrete mix or prioritize sustainability by using a formulation with a high percentage of recycled aggregates or low-clinker cement. There is no longer a need to compromise. We can use the most sophisticated materials exactly where they are needed, and the most sustainable, cost-effective materials everywhere else. It is the end of monolithic thinking and the beginning of strategic, multi-material design.
.jpg)
Geometric Freedom: Complex Concrete Forms Without Traditional Molds

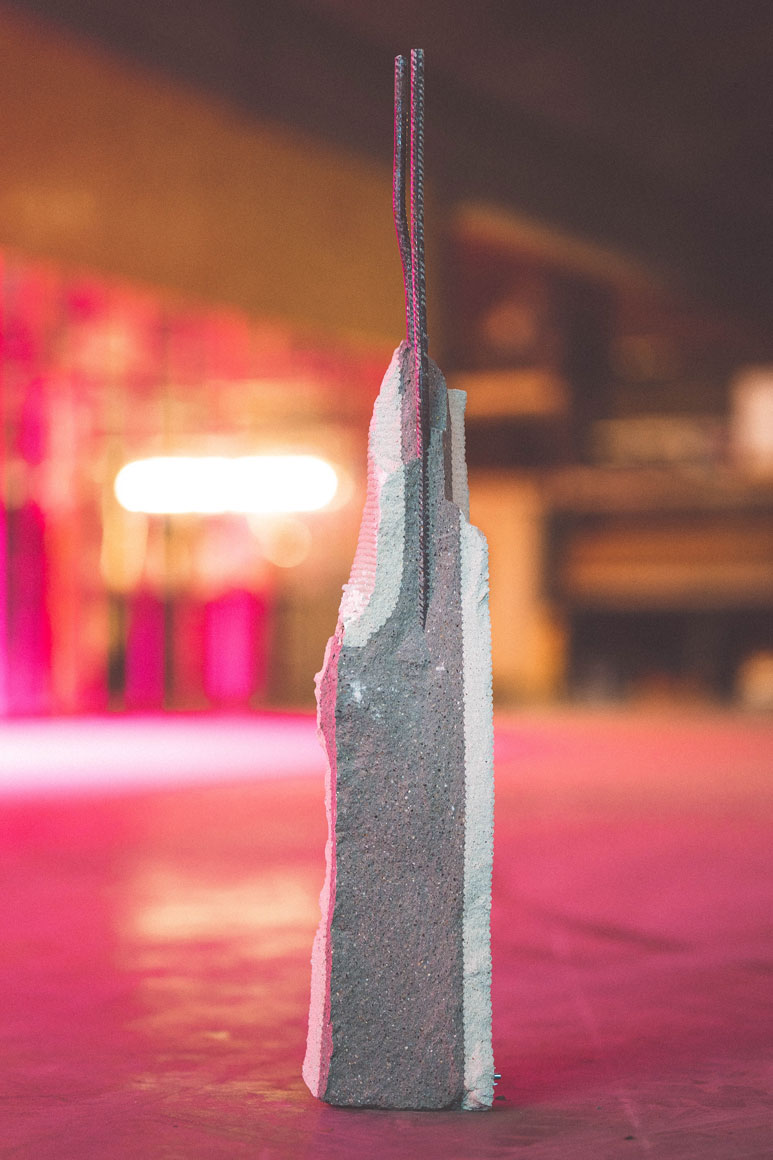

Robotic additive manufacturing allows architects and engineers to move beyond cylindrical or boxy geometries. Now, load-bearing concrete elements can be ribbed, twisted, or fluted, maximizing structural efficiency with minimal material use. Maximum efficiency and minimal material.
These complex geometries, which would be prohibitively expensive or simply impossible to produce with traditional molds, become trivial to fabricate. A column no longer needs to be a simple cylinder; it can become a fluted, tapering form that places material only where stresses are highest. This synthesis of form and fabrication moves us beyond simple extrusion and into an era where architecture is computationally optimized and robotically delivered, achieving a level of material efficiency that nature has always practiced and architects have always sought.
.jpg)
Permanent Mold Strategy: Reducing Construction Waste in 3DCP
By keeping the printed formwork as part of the final structure, we eliminate temporary materials and the labor involved in removing molds. This new paradigm in 3D concrete printing supports circularity and architectural innovation.
Conclusion: A New Logic for Sustainable Digital Construction
By combining the timeless wisdom of composite construction with the precision of robotics, we are solving the practical challenges of reinforcement and material cost while simultaneously opening a new frontier of architectural possibility. We are not just printing concrete; we are creating a new language of form, function, and fabrication.
